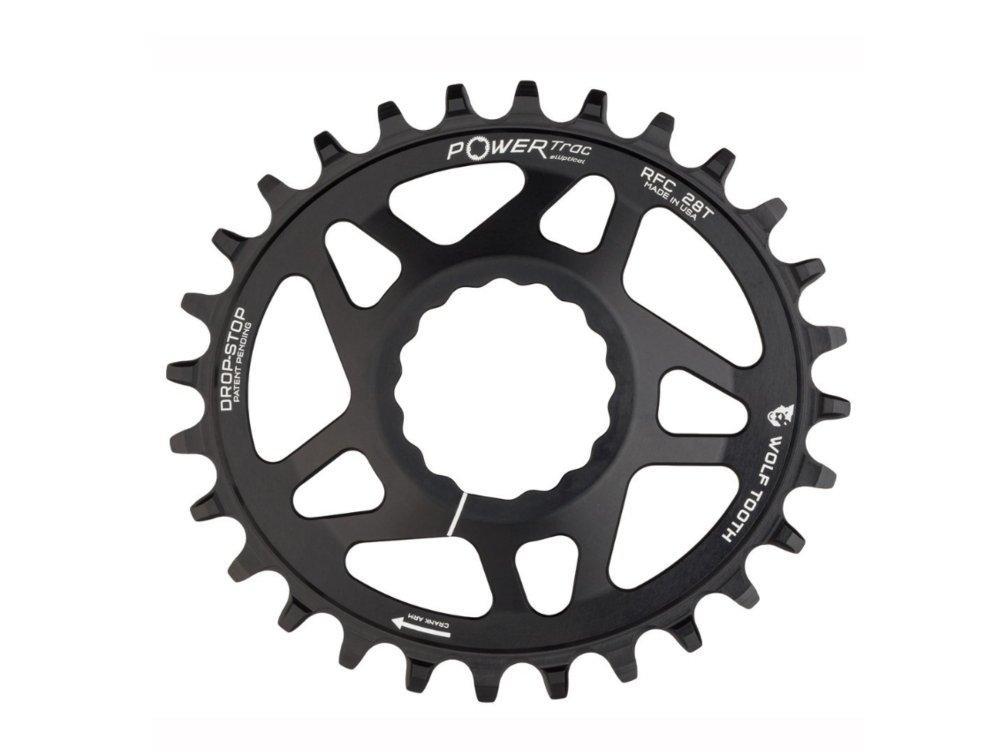

Wolf Tooth Components Elliptical Direct Mount Chainring for Race Face

It’s like having two chainrings in one! With PowerTrac Elliptical rings, the larger-diameter section of the ring engages with the chain at the optimal point on the downstroke, or “Power Zone,” – between 1-5 and 7-11 on a clock face – to take advantage of your body’s natural biomechanical POWER: For example, during this section, a PTE 34t ring is equivalent to a 36t round ring. Similarly in the “Recovery Zone” (11-1 and 5-7), the smaller section on the PTE ring engages, maximizing EFFICIENCY in the weakest part of the pedal stroke; here the PTE 34t ring is equivalent to a 32t round ring.

Additionally, the above provides a smoother, more efficient pedal rotation, which means better TRACTION. Steadier torque on the rear wheel means less spinning out in the “Power Zone,” while pedaling is easier during the “Recovery Zone,” so you maintain momentum.

COMPATIBILITY:

• Any Race Face Cinch(TM) system crankset (including Next SL, Sixc, Turbine, Aeffect)

• Both standard (142mm rear hub spacing) and Boost (148mm hub spacing) offsets available.

• For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle)
• Compatible with all 10, 11, and 12 speed chains (Including SRAM Eagle)

• If using a 9 speed drivetrain use a 10 speed chain (shifts and works well on a 9 speed drivetrain and fits the ring tighter for better chain retention).


 TECH SPECS:

• Design and manufactured in Minneapolis, MN USA

• Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability.

• Material - 7075-T6 aluminum

• Color - black

• Maximum diameter is that of a chainring 2t bigger than the size you order (so be sure there is adequate chainstay clearance!)

• Chainline 49mm (standard), 52mm (Boost)

• If you plan to ride in very muddy conditions, we recommend a chainguide or chainkeeper in addition to a clutch-type rear derailleur! Without these precautions, you may experience chaindrops and/or chainsuck

• Weight - 28t - 54g, 30t - 58g, 32t - 63g, 34t - 69g
