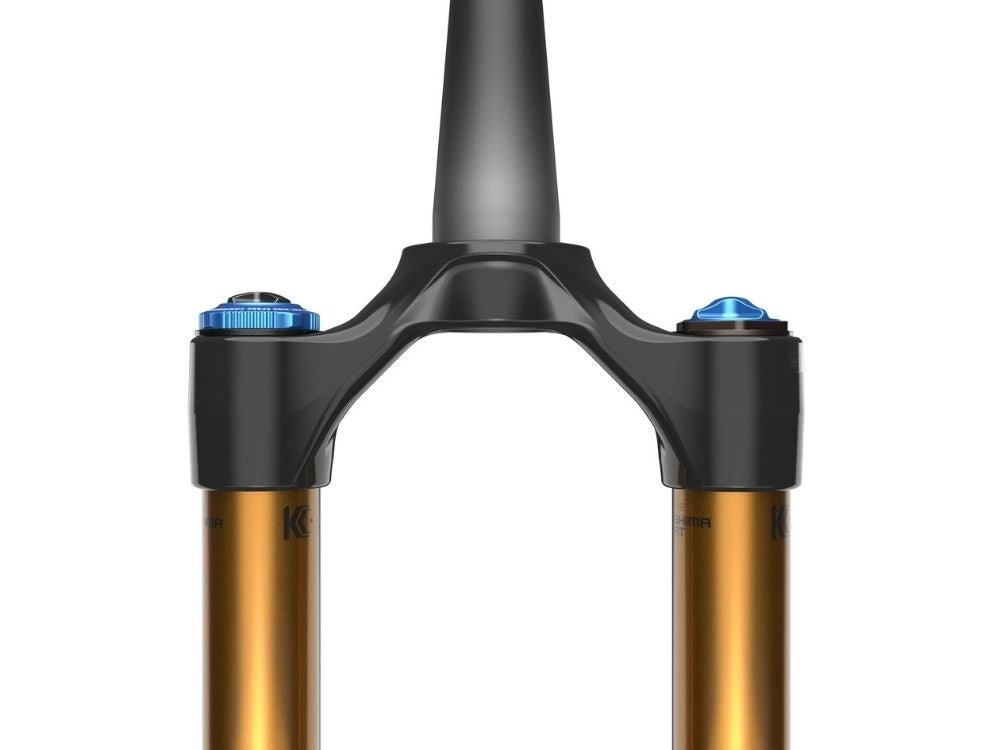

Lighter by 20 grams, while increasing steerer-tube overlap at the CSU, the new crown design improves durability while our engineering maintains stiffness and drops weight

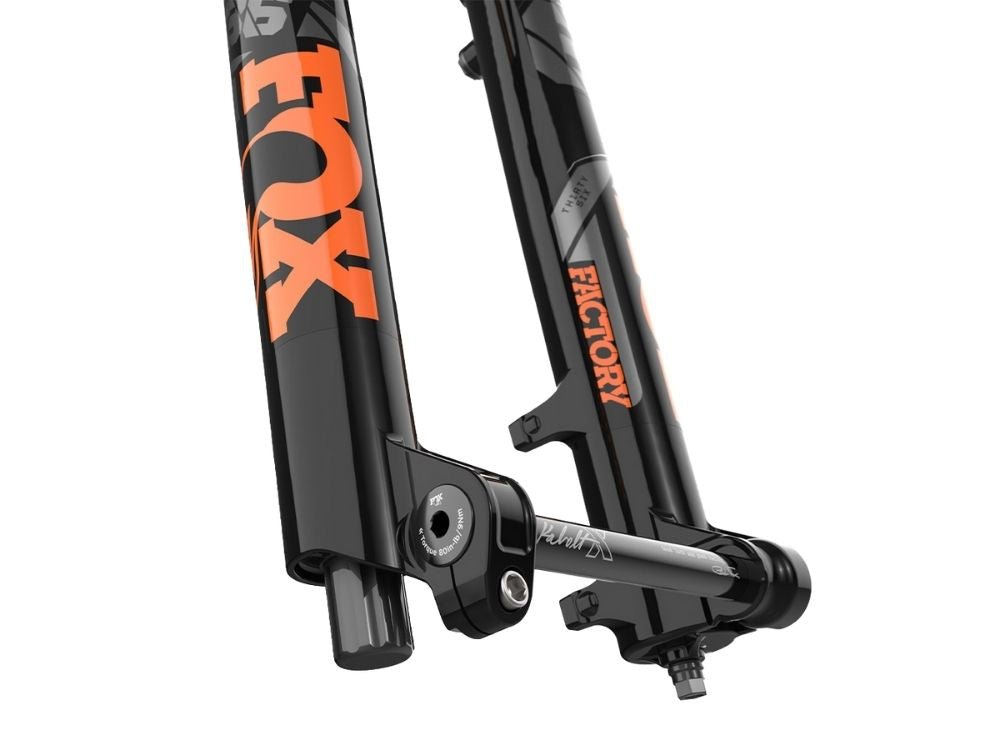

Kabolt, a lightweight bolt-on floating axle to shave grams and increase torsional stiffness via a sleeveless, single-sided pinch bolt design.
LOWER LEG BYPASS CHANNELS
Increasing air volume within the lower legs reduces the amount of additional unintended pressure ramping. Lower leg bath oil also circulates to the upper reaches of the legs, continuously lubricating the foam rings and bushings as the fork compresses and extends through its travel.
LOWER LEG BLEEDERS
Allows for atmospheric pressure equalization for better fork performance, allowing full travel to be achieved and increasing small bump sensitivity and responsiveness.

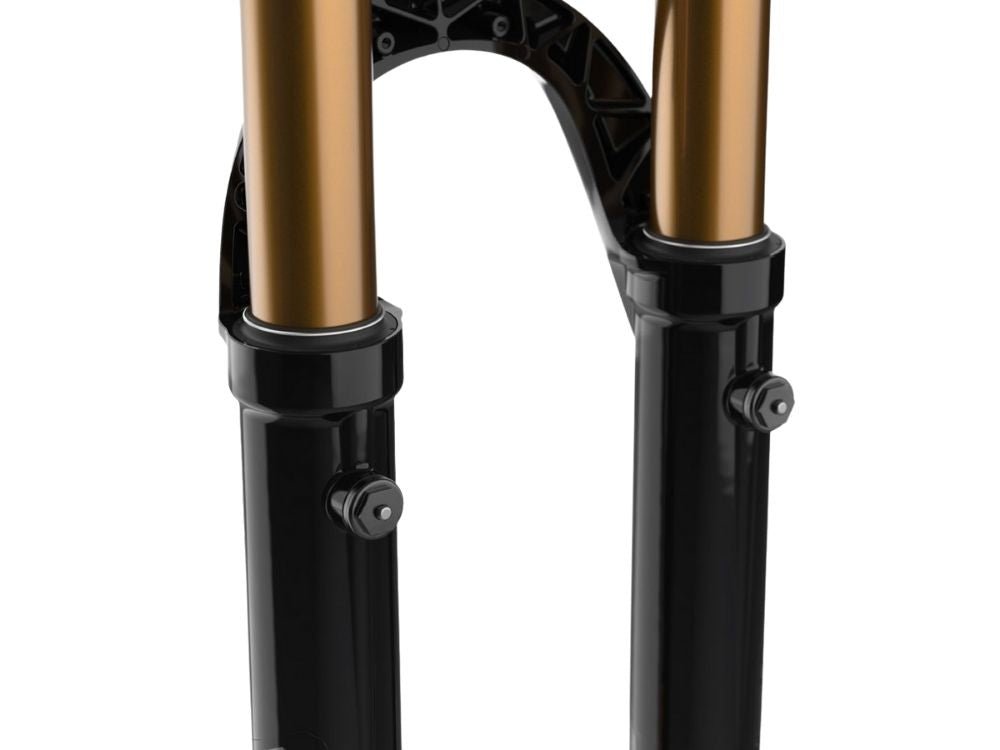

LOWER LEG ARCH
Our new lower leg design pulls out all the stops, shaving every possible gram while making sure not to compromise stiffness or strength requirements of modern enduro and gravity-style riding.

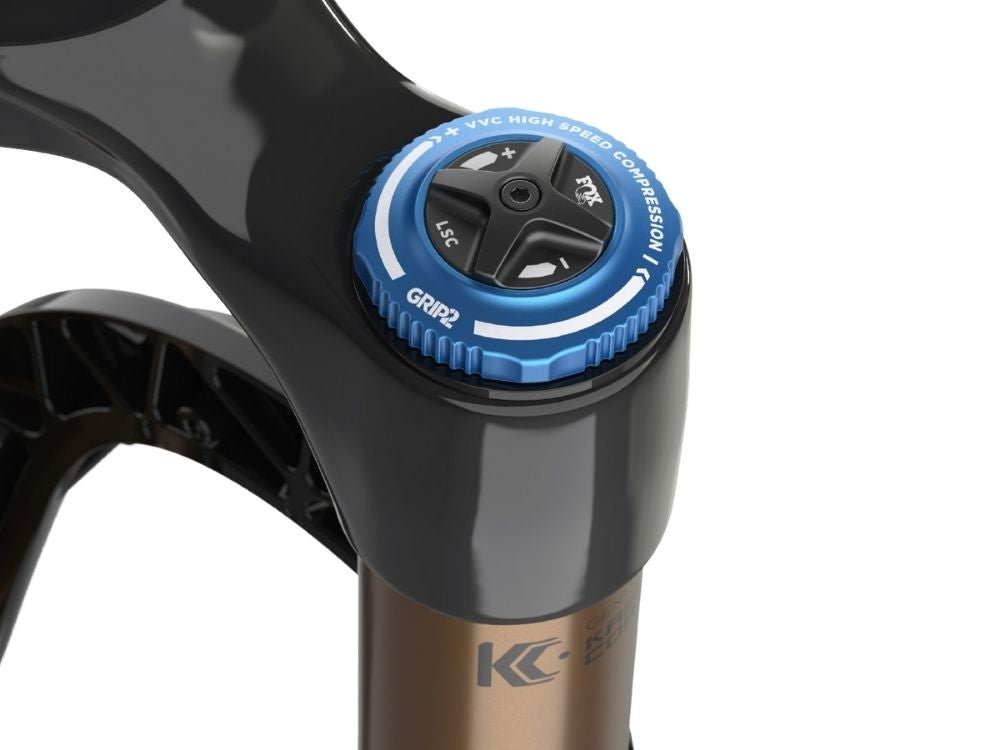

Unparalleled ride quality and ultra-precise adjustability. Allows for external fine-tuning of suspension performance thanks to our patented Variable Valve Control (VVC) technology.
Optimizes small bump sensitivity by increasing negative air spring volume. Its linear spring curve delivers plushness off the top, extra mid-stroke support, and more tunable bottom-out progression.
Starting Weight 29: 4.28 lb / 1942g (F-S 36, 29”, 160mm Travel, KaboltX 110, 3 Pos-Adj)*
* Fork weights shown are at 165mm steerer length with star fangled nut and disc brake guide installed. Hub Spacing: 15x110mm onlyAxle: QRUpper Tube Finish: Kashima CoatAir Channels: YesBleeders: YesFloating Axle: YesRotor Size: 180 direct Post Mount, Up to 230 compatibleMud Guard Mount: Optional Fox 36/38 Mud Guard with sturdy 4-point direct-mount attachmentAir Spring: FLOAT EVOLSteerer: 1.5 TaperStarting Weight: 1965 g** Not all fork travels are offered directly from Fox. To get you the exact fork for your bike we may need to change the air shaft assembly to achieve this. As an authorized Fox Service Center we will replace the air shaft with a new one in the length you need and we'll put fresh lubricant on the air spring seals and the proper amount of bath oil into each leg. This does not affect the warranty of your fork. Read more here.**
