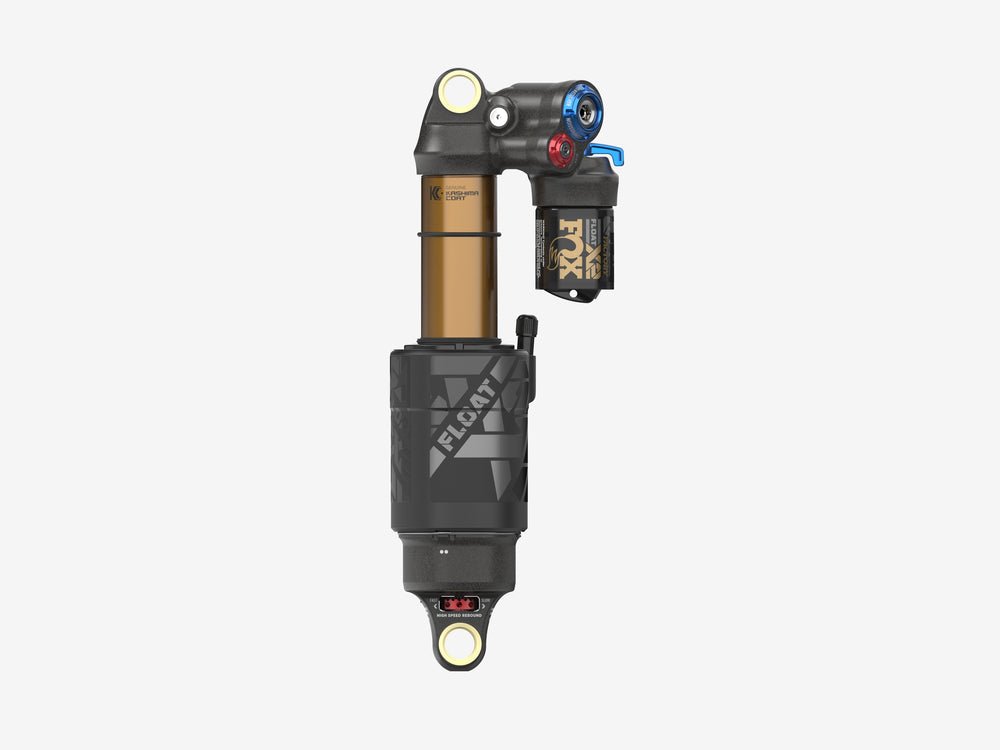

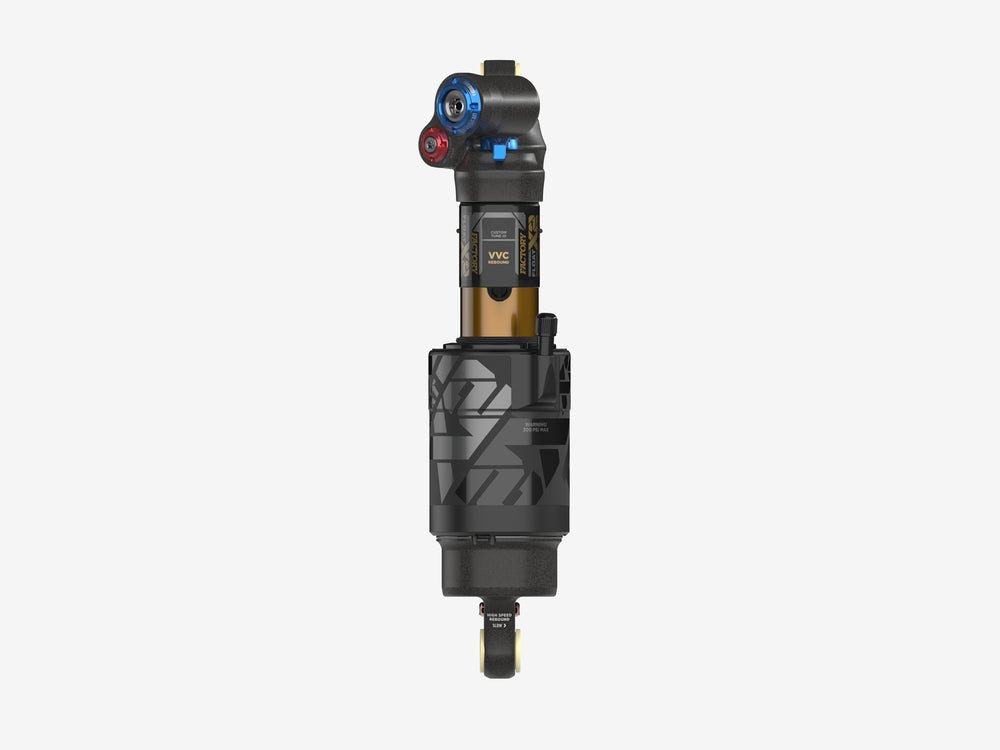

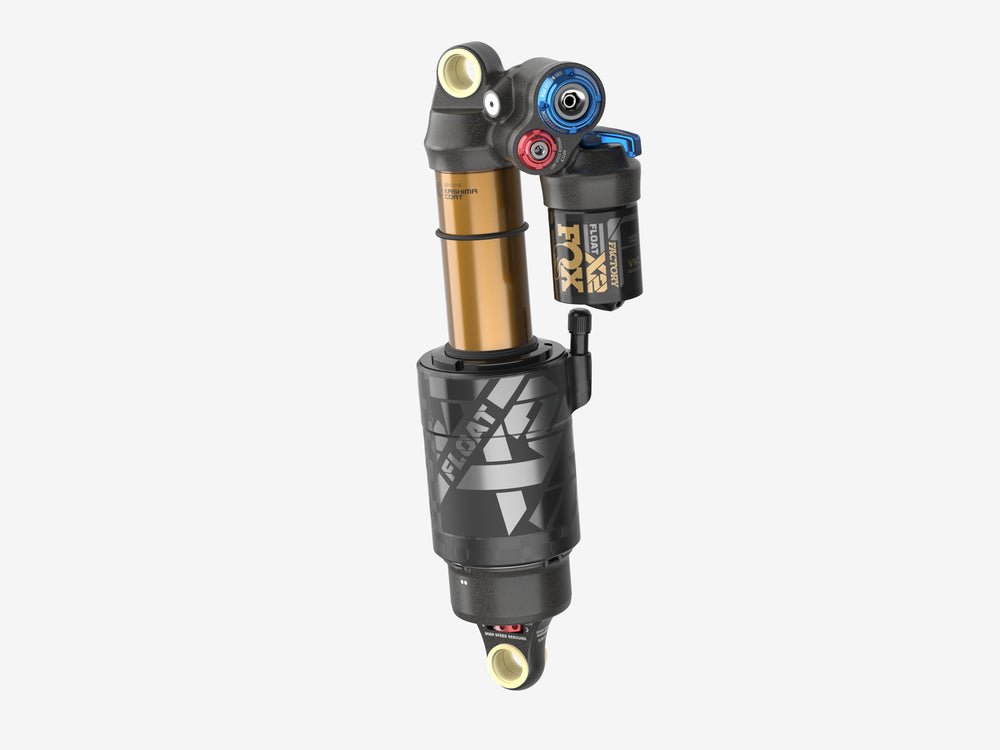

2025 Fox Float X2 Shock w/ Climb Switch - 230 x 57.5/60/62.5/65 mm

The Fox Float X2 is an extremely high-performing air shock meant for any rider seeking the sensitivity and traction of a coil shock, but with a more tunable air can and less weight. The Float X2 combines the oversized air can with a precision-tuned damper to create an ultra-plush, ground-hugging sensation. Designed to prioritize traction and performance first and foremost, the Float X2 offers a linear feel to efficiently use and control all of your frame's rear wheel travel. The progressive bottom-out bumper and adjustable volume spacers are utilized to create a comfortable and controlled end-stroke event.

Model, Size and Adjustments:

• Fox Float X2 Factory w/ Kashima Coating


• Low-Speed Compression - 16 clicks
• High-Speed Compression - 8 clicks
• Low-Speed Rebound - 16 clicks
• High-Speed Rebound (w/ VVC) - 8 clicks
• Independent 2-Position Climb Switch


• 230x57.5, 230x60, 230x62.5, 230x65
• Not the size you need? Shop All Fox Float X2 Shocks

• NEW bearing housing seal package virtually eliminates possibility of aeration
• NEW base valve piston design and compression tune for increased damping performance and improved sensitivity
• NEW scraper seal for improved durability
• NEW more robust eyelet design on trunnion models
• NEW 7000 series shock body on all models
• NEW hard chrome damper shaft finish for increased durability
• NEW gold decal graphics

Float X2 Specs and Features:

• High-flow main piston
• Progressive bottom-out bumper
• Low friction air seals
• Ultra-low friction, highly durable hard chrome damper shaft finish
• Matching 8-click HSC and HSR on GRIP2 and X2 shocks
• Updated compression rations - 300psi max
• VVC on high-speed rebound increases tunability
• Finned inner body for improved structural rigidity and reduced hysteresis

Other Accessories and Content related to the Fox Float X2:

Wondering what size mounting hardware you might need? Or if you even need hardware at all? Check out our Complete Guide To Rear Shock Mounting Hardware

Need help setting up your fancy new Float X2? Check out our in depth suspension set up guide to get this shock dialed in!

Volume spacers are included in the box, not installed in the shock

Grab a shock pump to inflate your shock.

Float X2 shock stroke can be changed with Float X2 Stroke Spacers and the appropriate Screws.
