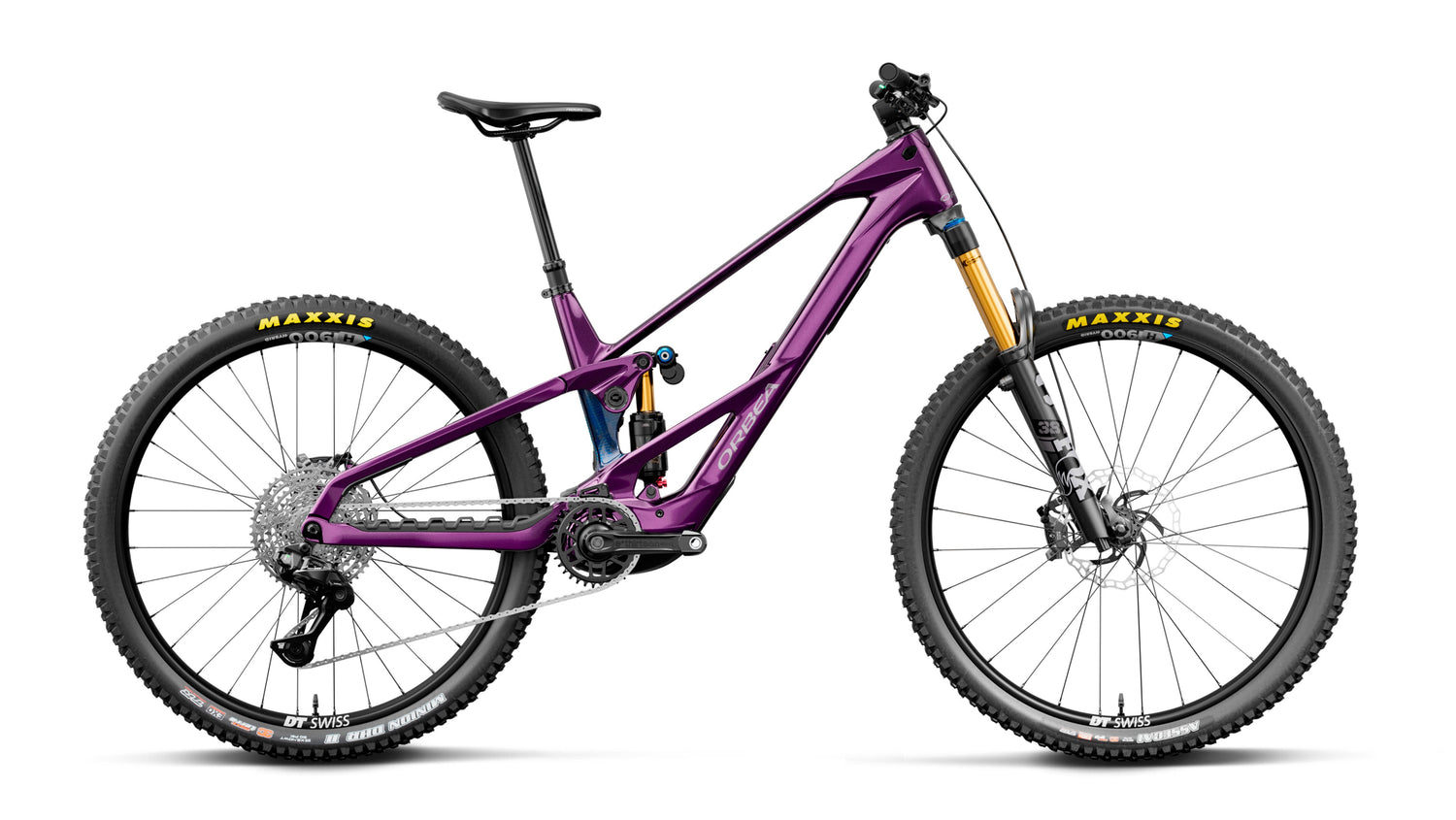

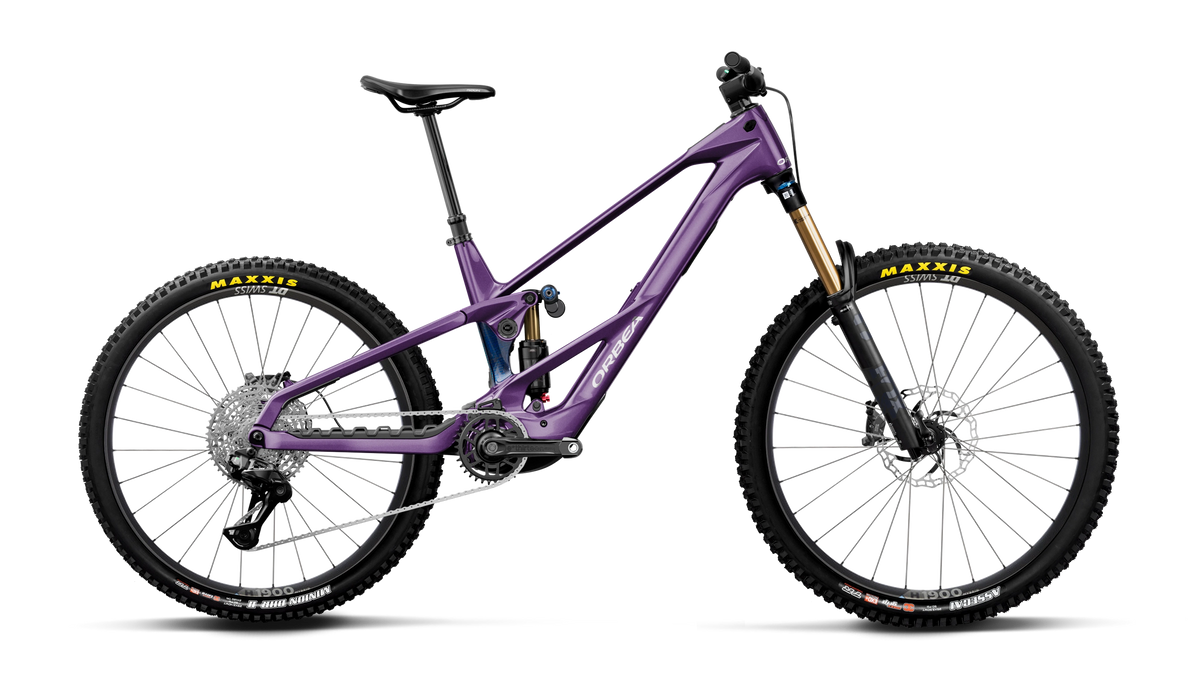

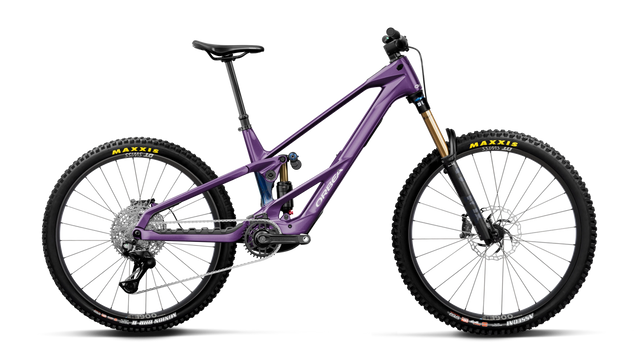

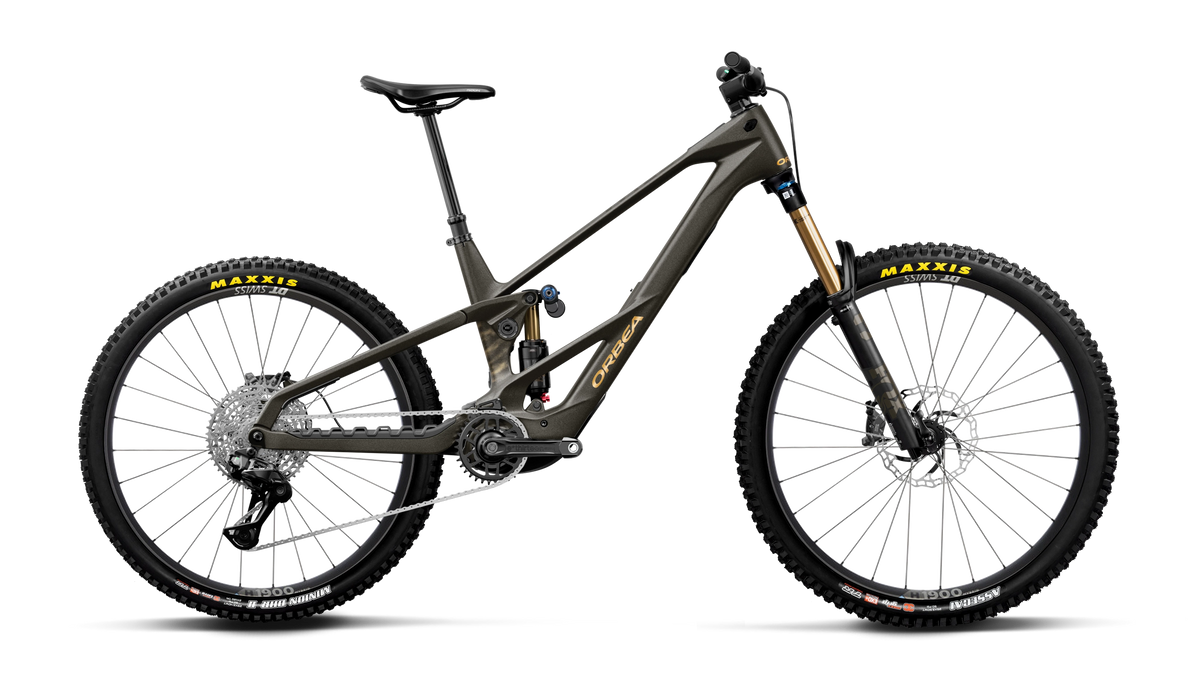

2027 Orbea Wild LT M10 Mullet
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped out within 1 business day! Add this item to your cart to see shipping options at checkout.
Orbea Wild LT - The Yes Machine
Built around the Avinox M2S motor, the new 2027 Orbea Wild LT combines the best drive unit in the biz with a gravity driven design for maximum fun up and down the hill! The Wild LT has a new low slung silhouette to match the Rallon, and the low profile Avinox battery and motor disappear into the background. With Orbea's exclusive RS tune, the Avinox motor features nearly instantaneous torque, with 130Nm readily accessible at all times and 150Nm while in Superboost.
The M10 build features an OMR Carbon frame decked out with Shimano's XT Hyperglide drivetrain, DT Swiss wheels, and Fox Factory suspension front and rear.
With a modern geometry package, the Orbea Wild LT offers frame sizes to fit everyone from 4'11" to 6'8". The low top tube increases standover clearance, and Orbea's Steep 'n' Deep seat post offers maximum seat post drop for all sizes. It shares the same suspension kinematics as the Enduro and Downhill focused Rallon, with 170mm of travel and a progressive leverage ratio to control all the hits.
SPECS
| Frame |
Orbea Wild OMR 2027, Mullet wheels, Concentric Boost 12x148mm |
| Fork | Fox 38 Float Factory 170, Grip X2, 15x110, Kashima |
| Shock |
Fox Float X2 Factory Trunnion 2-Pos Adjust Kashima custom tune 205x65mm |
| Motor | DJI Avinox M2S |
| Battery | DJI Avinox 800Wh |
| Display | DJI Avinox DP100 |
| Remote |
Orbea System Controller Remote |
| Charger | DJI Avinox Charger 4A |
| Crankset/Chainring | e*thirteen Helix Race e*spec Direct Mount 34T 55mm ChainLine |
| Shifter | Shimano XT M8200 I-Spec EV |
| Cassette | Shimano CS-M6200 10-51t 12-Speed |
| Derailleur | Shimano XT M8200 SGS Shadow Plus |
| Chain | Shimano M6100 |
| Handlebar | OC Mountain Control MC21 Alu SL, Rise 35, Width 800 |
| Stem | OC Mountain Control MC20, 0º |
| Computer Mount | OC Computer Mount CM-05, Garmin/Sigma |
| Brakes | Shimano XT 8220 Hydraulic Disc |
| Rotors | Galfer Wave Rotors 200mm front / 200mm rear |
| Wheels | DT Swiss H 1900 Spline 30c (29”Front / 27,5”Rear) |
| Front Tire | Maxxis Assegai 2.50” 60TPI Fold 3C MaxxGrip Exo+ TR |
| Rear Tire | Maxxis Minion 2.40” 120x2TPI Fold 3C MaxxTerra DD TR |
| Seatpost | OC Mountain Control MC22, 31.6mm, Dropper |
| Seatpost Lever | Shimano SL-MT500 I-Spec EV |
| Saddle | Fizik Aidon 208x145mm manganese rail |
| Headset | Acros ZS56 |
| Tools | MT-20 FLP Multitool 2/3/4/5mm hex OC Rear axle lever (Hex 6 + valve core removal) |
