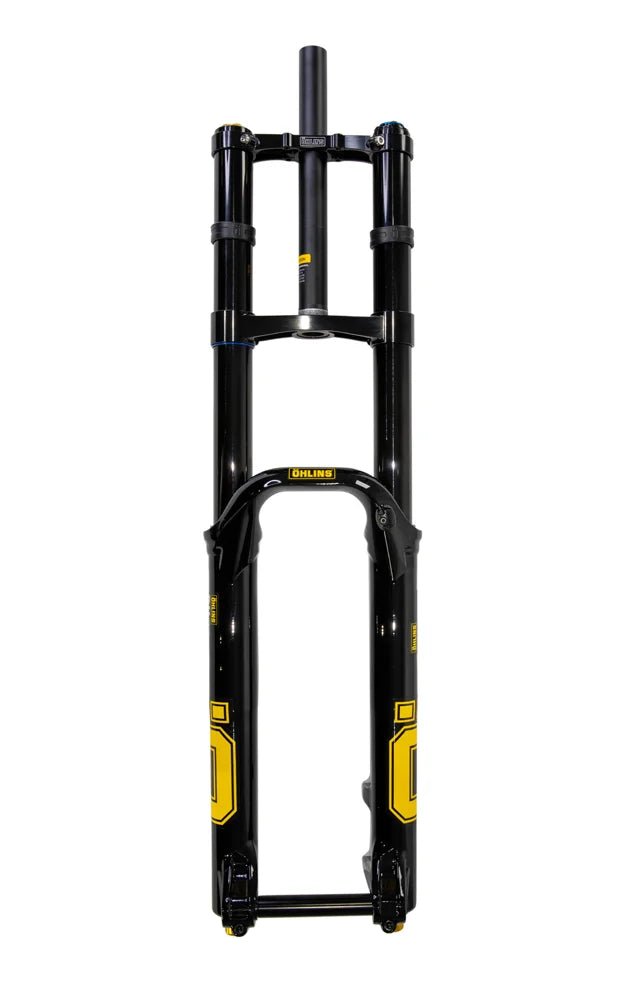

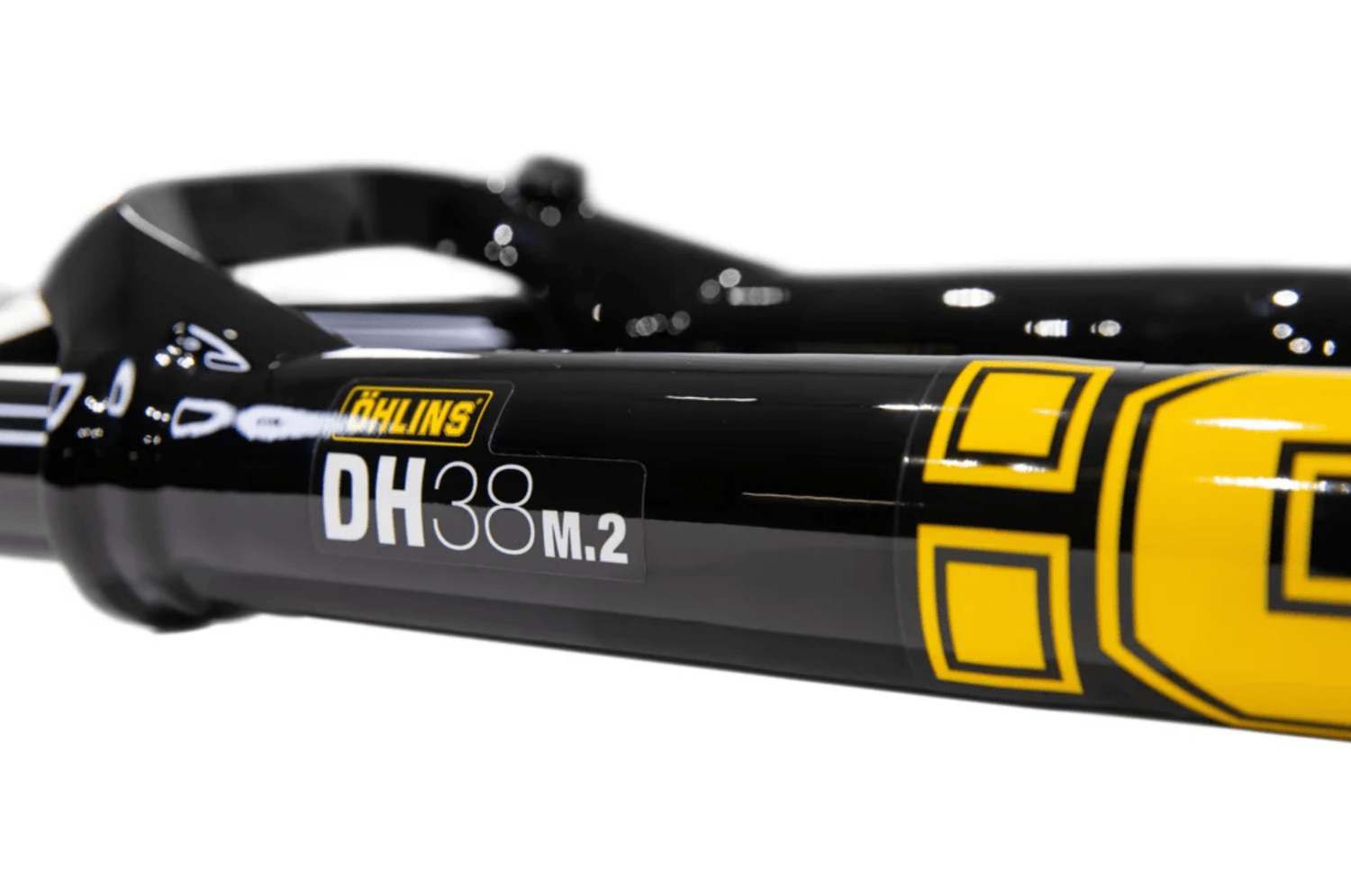

Ohlins DH38 M.2 Coil

The new DH38 m.2 features reworked internals and updated settings, built around the race-proven TTX18 cartridge. This fork is the ultimate downhill weapon, delivering hard-hitting performance through its dual-crown design. Enhanced sensitivity and comfort, combined with ultimate traction and control, give you the edge in every moment of the ride.

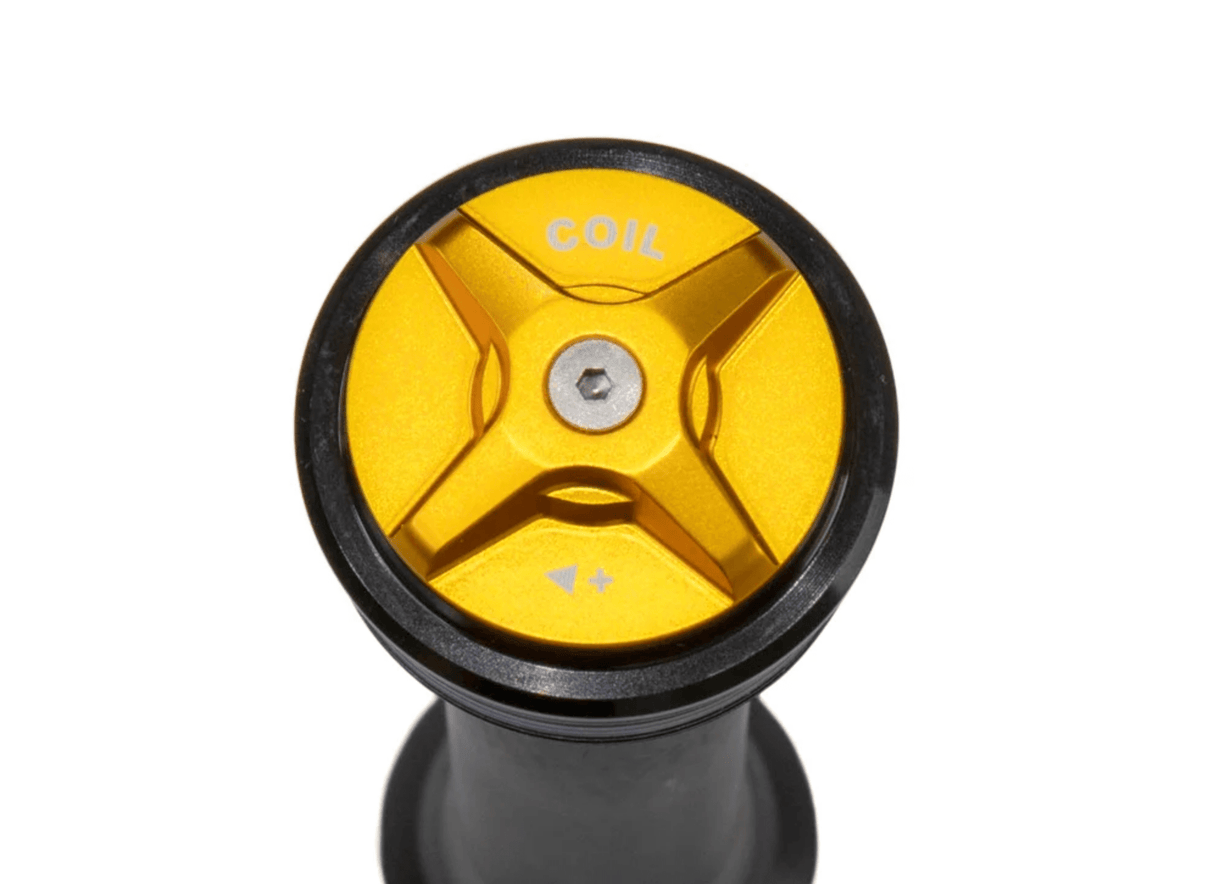

This fork comes with the White spring pre-installed, and is appropriate for ~200lbs riders. Here's a little guide for recommended spring rates on the DH38:

140lbs riders -> Yellow Spring (Part number OH4432)
160lbs riders -> Green Spring (Part number OH4433)
180lbs riders -> Blue Spring (Part number OH4434)
200lbs riders -> White Spring (Part number OH4435)
220lbs riders -> Black Spring (Part number OH4436)
240lbs riders -> Red/Black/Red Spring (Part number OH4437)

• TTX18 damper's 18mm piston provides optimal small bump sensitivity

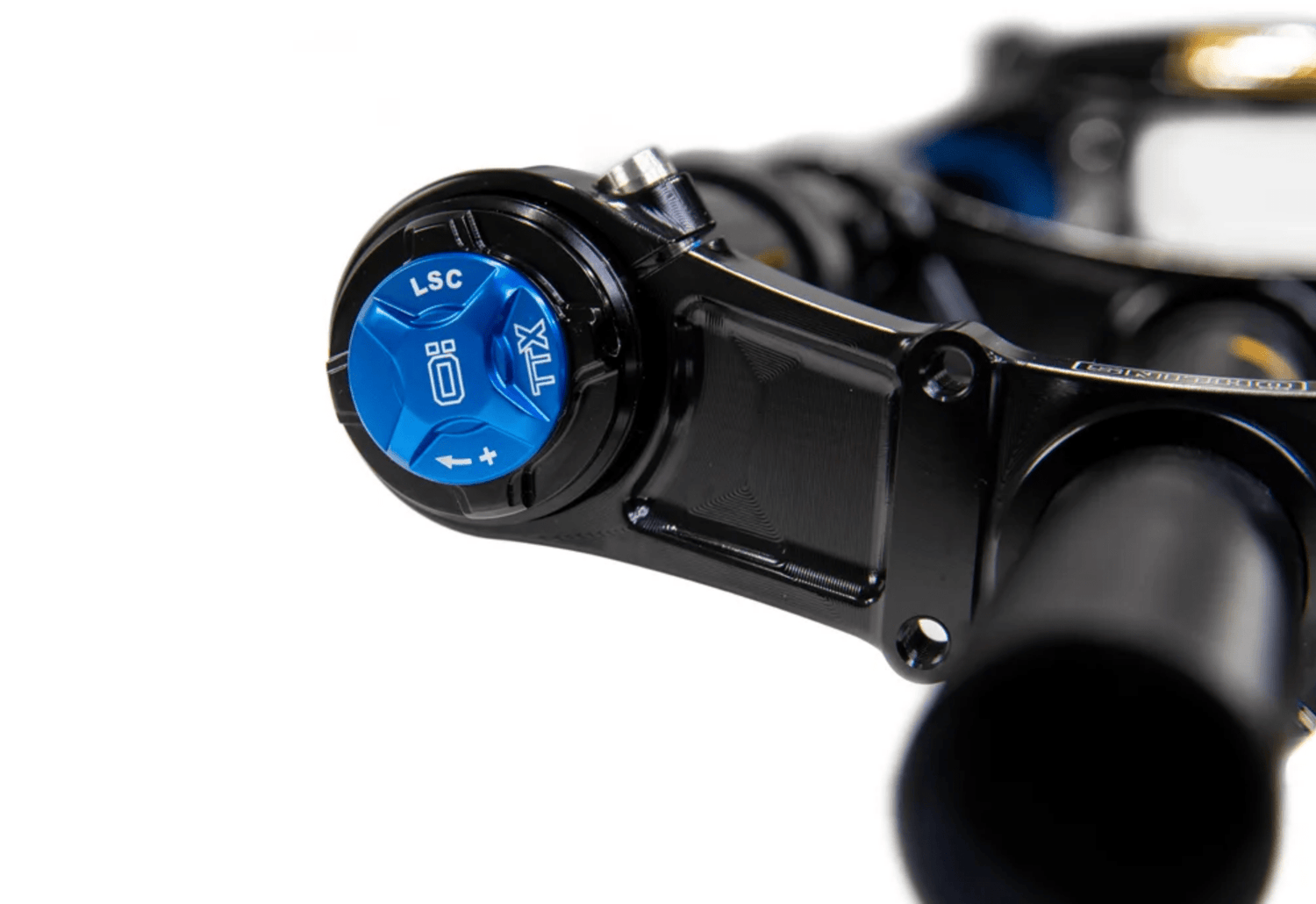

• 15 clicks of low speed compression and low speed rebound
• 5 clicks of high speed compression
• Twin piston, three chamber air spring system, isolated from the upper tubes to reduced head build up
• Total Tune Spring Curve System (TTSC) allowing total air spring tuning from the initial movement through to the bottom out
• 200mm brake post mounts

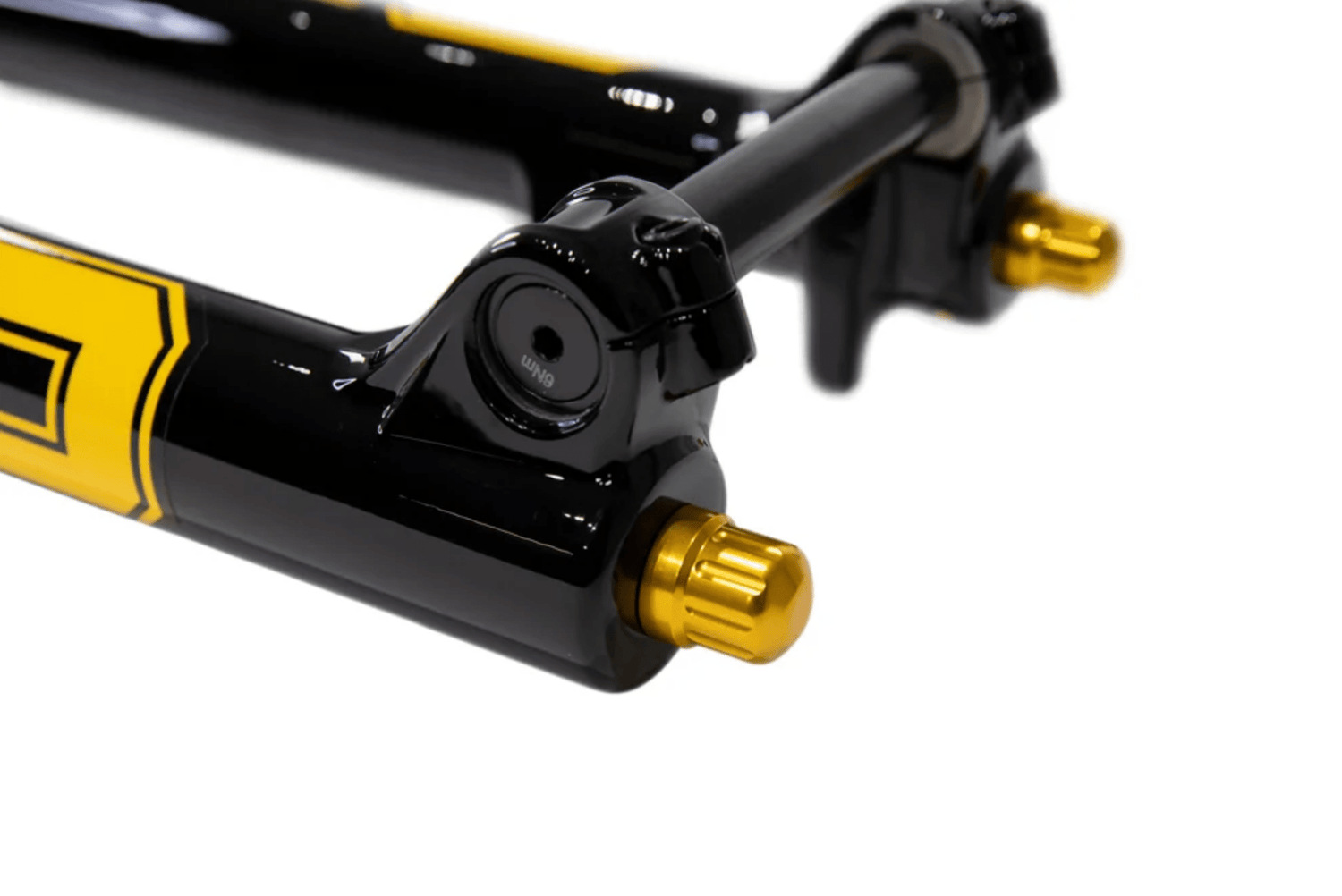

• 20x110mm DH Boost thru-axle
• Max tire size: 29x2.8 inch or 27.5x3.0 inch
• E-Bike approved
• CROWN/STEERER NOT INCLUDED
