The Code lever pushes 30% more fluid than the Guide lever, resulting in 15% more stopping power over the SRAM Guide!
We recommend the Code for very aggressive riding, or as some would call it, "ENDURO" and DH. Check out the Guide if you're after a little lighter weight, less aggressive brake!

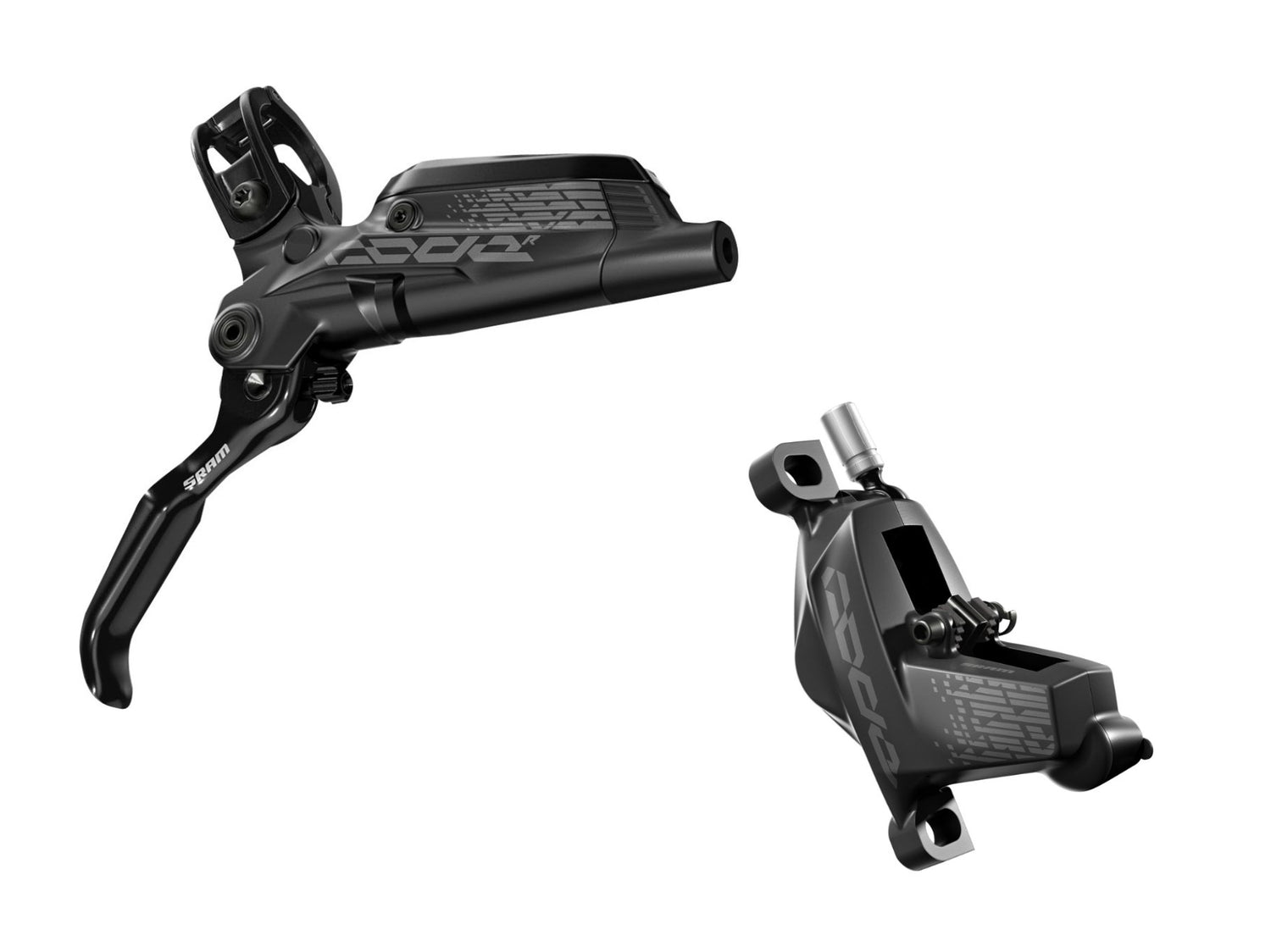

Sleek, easy to use, yet immensely powerful. Code R packs a winning punch with a reliable DirectLink™ lever mated to Code’s new oversized four-piston caliper. SRAM’s signature ergonomics are supplemented by the tool-free reach adjust for a fit to each riders’ needs, to unleash Code’s superior braking power, consistency and modulation.
SPECIFICATIONS FOR CODE R
WEIGHT - 443g
LEVER MATERIAL - Alloy
CALIPER DESIGN - 4-piston, dual diameter caliper
FINISH - Black anodized
ROTOR - CenterLine
PAD - Steel-backed metal sintered
FLUID - DOT 5.1
MOUNT - Ambidextrous
ADJUSTMENT - Tool-free Reach Adjust, Contact Point Adjust, Banjo Adjust
SPECIAL FEATURES - Tool-free Reach Adjust, Contact Point Adjust, Piggyback Reservoir, MatchMaker™ X compatible, Bleeding Edge™, Heat Shield
TECHNOLOGY HIGHLIGHT - (S)SwingLink™, Lever Pivot Bearings, Bleeding Edge™, Heat Shield
MATERIAL - Forged aluminum
PAD / HOLDER - Top-loading
SYSTEM - OPEN SYSTEM
ROTOR SIZES - 160, 170, 180, 200mm
BEND ZONE™ - YES
AMBIDEXTROUS - YES
STAINLESS HARDWARE - YES
OTHER - All-new Code design based on Guide architecture, Designed specifically to handle heavy-duty demands
